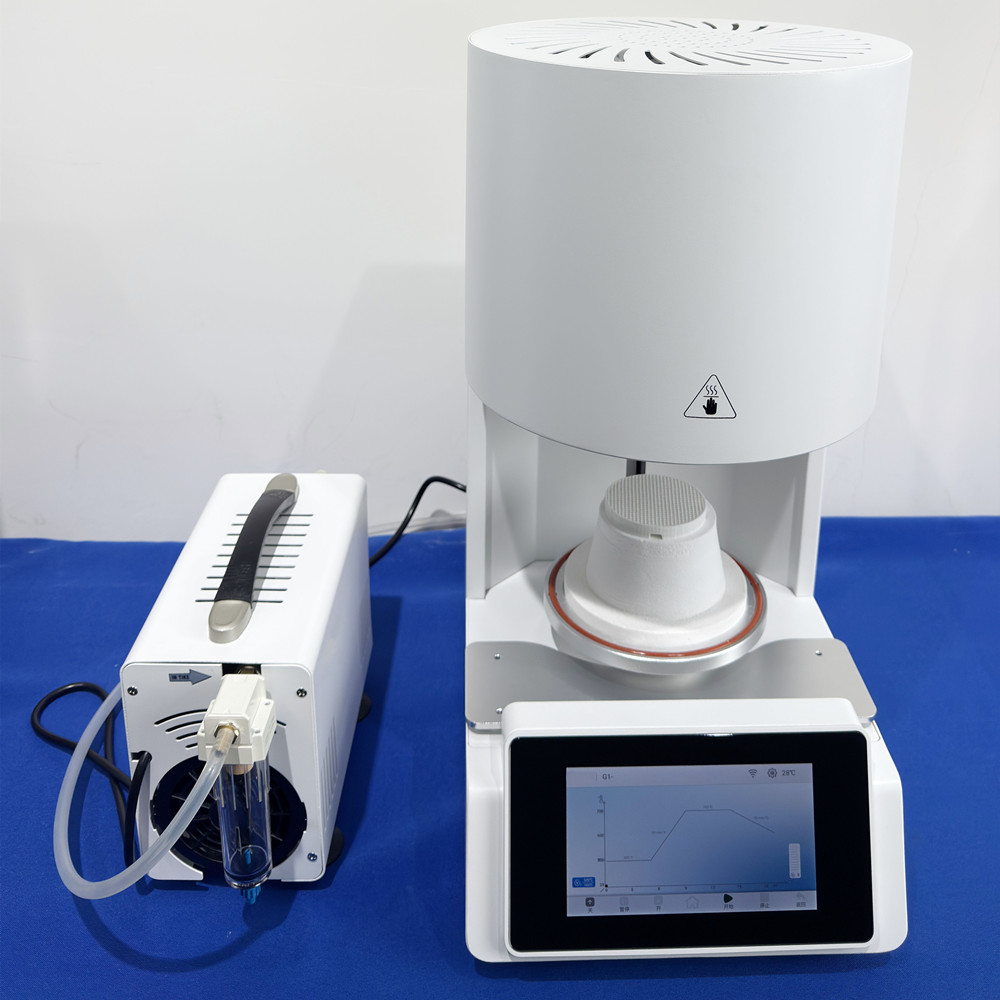

Smart Control Series Dental Ceramic Vacuum Sintering Furnace is a high-end laboratory equipment designed for the research and development of dental restorations (such as all-ceramic crowns, veneers, inlays) and precision ceramic materials. Combining intelligent IOT technology, high-precision temperature control system and industrial-grade resistant material technology, this equipment can meet the high standard demand for ceramic sintering process in dental clinics, university laboratories and material research and development centres to ensure the ultimate performance of restorations in terms of denseness, aesthetics and biocompatibility.

Technical Parameters

Main Technical Parameter
Display Mode	Android smart screen
Ultimate Temperature	1200℃
Heating Rate	Max:140 ℃/Min
Heating Zone Diameter	120x70mm
Temperature Control Accura	+1℃
Ultimate Vacuum	-98kpa
Preset Curve	100PCS
Equipment Voltage	Standard AC:220V 50/60Hz Customized AC:110V 50/60HZ
Equipment Power	1.5kw
Dimension	391x276x563(mm)
Net Weight	25kg

1. Intelligent interconnection, worry-free operation

Remote dual-end control: support mobile phone (Android/iOS) and computer remote real-time monitoring, anytime and anywhere to view the furnace temperature profile, vacuum and operating status, a key to start and stop the sintering process.

Patented OTA technology: the industry's first software upgrade function, the old equipment can be seamlessly adapted to the new features, through the cloud push a key to complete the system update, no need to return to the factory to reduce maintenance costs.

2. Precision temperature control, quality as one

Imported nickel-chromium alloy heater: high temperature resistance up to 1500 ℃, optimised for dental ceramics, thermal efficiency increased by 30%, no risk of heavy metal pollution, service life of more than 100,000 sintering cycles.

Intelligent PID algorithm: ± 1 ℃ level of accurate temperature control, with 360 ° surrounded by the heating chamber, to ensure that the furnace temperature field uniformity error <0.5%, to eliminate the problem of restorations deformation or chromatic aberration.

3. Long-lasting vacuum system, stable and low noise

German mute vacuum pump: vacuum value up to -98kPa (close to absolute vacuum), fast pumping speed, noise <45dB, maintenance-free design can run continuously for more than 5000 hours.

Anti-pollution piping design: exclusive double-layer filtration system, intercepting 99% of dust and impurities, protecting the vacuum pump and sealing components, extending the life of core components.

4. Safe and energy-saving, preferred by laboratories

Dual-cavity metal protection: internal and external double-layer 304 stainless steel cavity, high-temperature insulation layer to isolate thermal radiation, shell temperature <50 ℃, to eliminate the risk of scalding.

Intelligent standby protection: 30 minutes without operation automatically enter the energy-saving mode, the furnace body intelligent cooling to below 200 ℃, saving 40% of energy consumption, while protecting the heating element and circuit safety.

Dental clinic: rapid sintering of zirconia crowns and bridges, glass ceramic veneers, to enhance the efficiency of diagnosis and treatment.

Teaching laboratories: to support students' practical teaching, intuitive learning ceramic materials sintering process.

R&D centre: for the development and performance testing of new bioceramics and nanocomposites.
