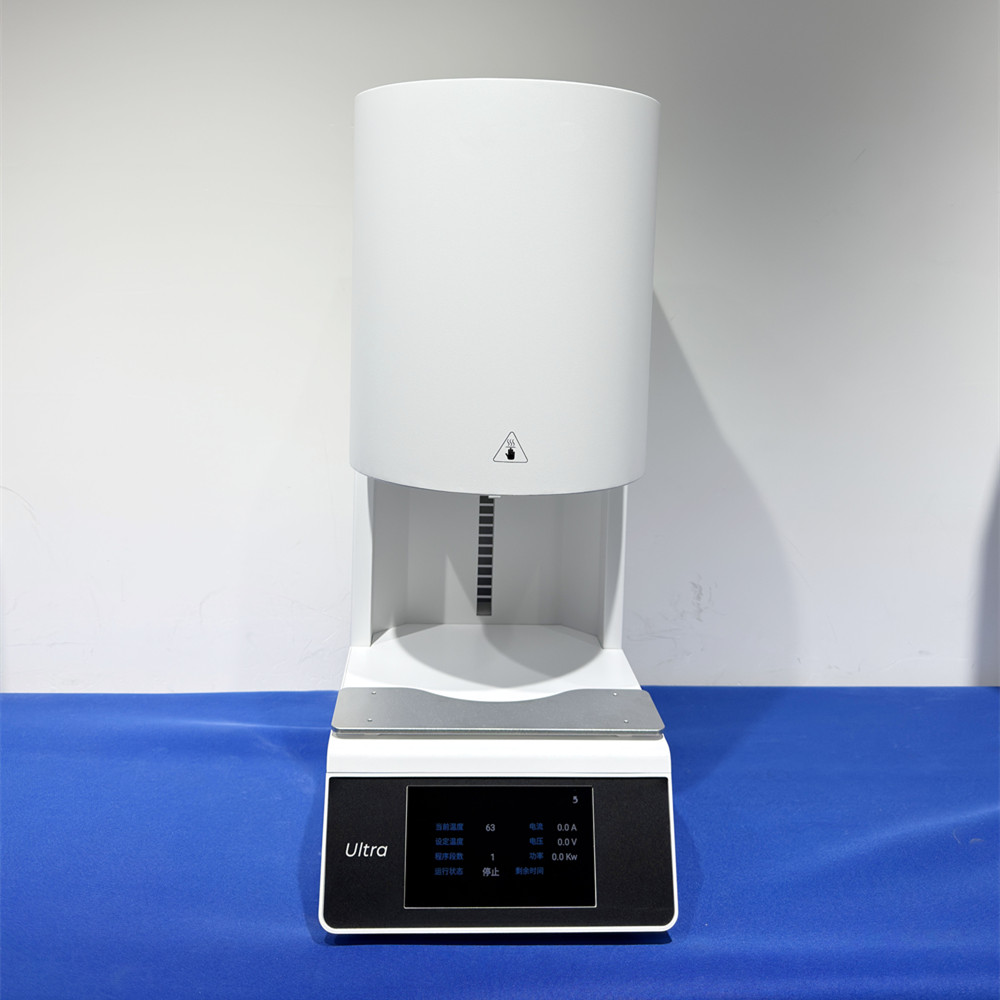

Product Overview
A high-performance sintering furnace specially developed for zirconia ceramics, dental prostheses and precision ceramics, integrating an intelligent temperature control system, high-speed heating technology and industrial-grade high-temperature-resistant structure to realise precise sintering requirements in both laboratory and mass-production scenarios.
Technical Parameter Table
Main Technical Parameter
|
|
Display Mode
|
Android smart screen
|
|
Ultimate Temperature
|
1600℃
|
|
Heating Rate
|
Max:200C/Min
|
|
Heating Zone Diameter
|
85x80mm
|
|
Temperature Control Accuracy
|
+1℃
|
|
Crucible Dimension
|
70mmx30mm(Max.place 2 layers)
|
|
Equipment Voltage
|
Standard AC:220V 50/60Hz
Customized AC:110V 50/60Hz
|
|
Equipment Power
|
2kw
|
Dimension
|
446x296x700(mm)
|
Net Weight
|
40kg
|
Typical Application Scenarios
✅ Dental restorations (zirconia crowns, bridges, veneers)
✅ Precision ceramic electronic components (sensor substrates, insulating components)
✅ Industrial ceramic structural components (wear-resistant tools, aerospace components)
✅ Jewellery grade zirconia jewellery sintering
6 core advantages
1. Full-scene intelligent interconnection
7-inch Android touch screen: intuitive operation interface, support multi-language switching, real-time display of temperature profile, sintering progress and equipment status.
Mobile phone/PC remote control: cross-platform monitoring via WiFi/4G, adjusting parameters and getting alarm notifications anytime, anywhere.
OTA one-key upgrade: the patented software system supports remote firmware update, the old equipment synchronised to enjoy the latest features
2. ultra-high-speed uniform heating
Large diameter silicon carbide heating element (φ85mm):
Heating rate up to 200℃/minute, shortening sintering cycle by 50%.
99.9% high purity silicon carbide material, high temperature resistance of 1600℃+, life expectancy increased by 3 times.
Three-dimensional wrap-around heating, cavity temperature difference ≤ ± 1 ℃, to ensure the consistency of material performance
3. Military grade temperature control precision
Intelligent PID algorithm: millisecond dynamic correction of temperature fluctuations, to achieve ± 1 ℃ accurate temperature control.
Fully automatic step sintering: preset sintering procedures for denture, zirconia block, etc., and support for customised 20-segment temperature control curve.
4. Zero pollution sintering environment
High purity alumina inner cavity: 99.5% Al₂O₃ material, no heavy metal residue, sintered product transmittance reaches the industry's top standard.
Closed inert gas protection (optional): support argon/nitrogen access to meet the needs of high-end zirconia anti-colour change.
5. Industrialised large capacity design
Double-layer crucible structure: single sintering 40 denture units (compatible with φ30×87mm standard crucible).
Rapid cooling system: optional air/water cooling module, complete the cooling cycle within 30 minutes.
6. Dual certification for safety and energy saving
2kW ultra-low power consumption: 35% energy saving compared with similar products, 24 hours continuous operation and stability
Eight safety protection: over-current/over-voltage/over-temperature/electricity leakage/door lock sensor/abnormal air pressure/data backup/emergency stop protection.
Other
24 hours online technical response, 48 hours troubleshooting programme
Free sintering process parameter package
Support customised chamber size/gas protection/automated in-line solutions
