Product Overview
This series of muffle furnace adopts advanced programme temperature control technology, the highest temperature up to 1800 ℃, support vacuum and multi-atmosphere environment (inert gas, nitrogen, argon, etc.). The furnace chamber design takes into account the large capacity and energy saving, equipped with intelligent safety system, can meet the high temperature sintering, materials analysis, metal heat treatment and other demanding experimental needs, is the ideal equipment for laboratory and industrial high temperature treatment.

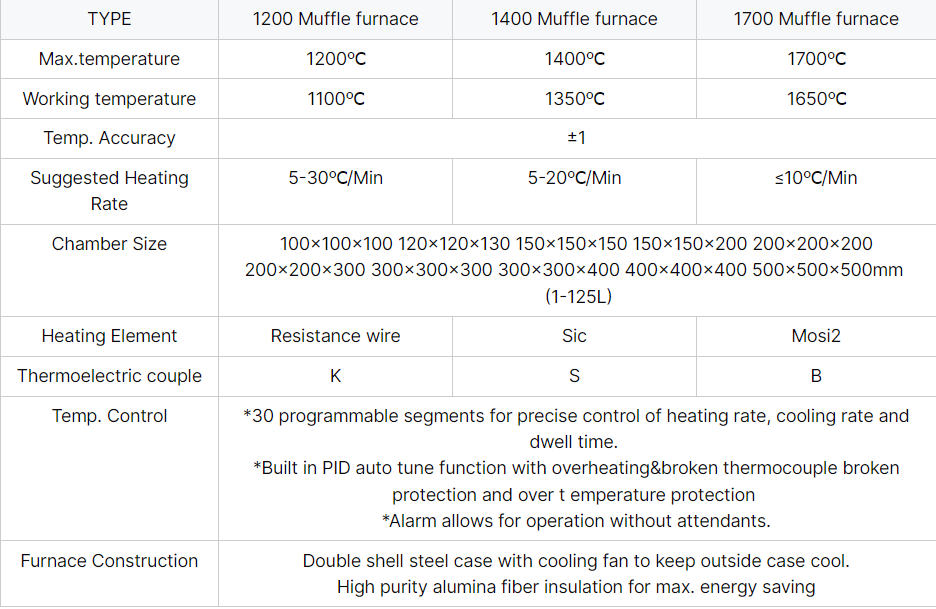

Core technical parameters
Product Core Advantages
Energy efficient design
Double shell air-cooled structure, furnace shell surface temperature ≤ 60 ℃, to protect the operation safety.
Furnace chamber adopts polycrystalline mullite fibre or alumina ceramic fibre, low heat storage, energy-saving effect up to 60%-80% of traditional electric furnace.
Intelligent and precise temperature control
Microcomputer PID control, support touch screen / digital display dual mode, programmable 50-segment curve, real-time recording of temperature data and support U disk export.
Multiple safety protection: over-temperature alarm, broken coupling protection, over-current protection, open door power failure and power restoration delay function.
Multi-function atmosphere control
Support inert gas (nitrogen, argon), mixed gases and vacuum environment, the inlet end is equipped with a needle valve and vacuum gauge, precise adjustment of gas flow.
Durable structure design
Step-type splicing furnace chamber, strong thermal shock resistance, frequent rapid cooling and heating is not easy to crack.
Flush door design reduces space occupation, long life of silicon molybdenum rod heating element, low maintenance cost.
Application Scenarios
Material science: ceramic sintering, metal annealing, nano-material synthesis.
Chemical analysis: ash determination, elemental high temperature decomposition.
Industrial field: battery material preparation, heat treatment of semiconductor components.
Standard configuration and optional accessories
Standard configuration: vacuum pump, crucible clamp, high temperature gloves, manual, certificate of conformity.
Optional accessories: 7-inch touch screen controller, paperless recorder, remote communication module, customised furnace chamber size
