Product overview

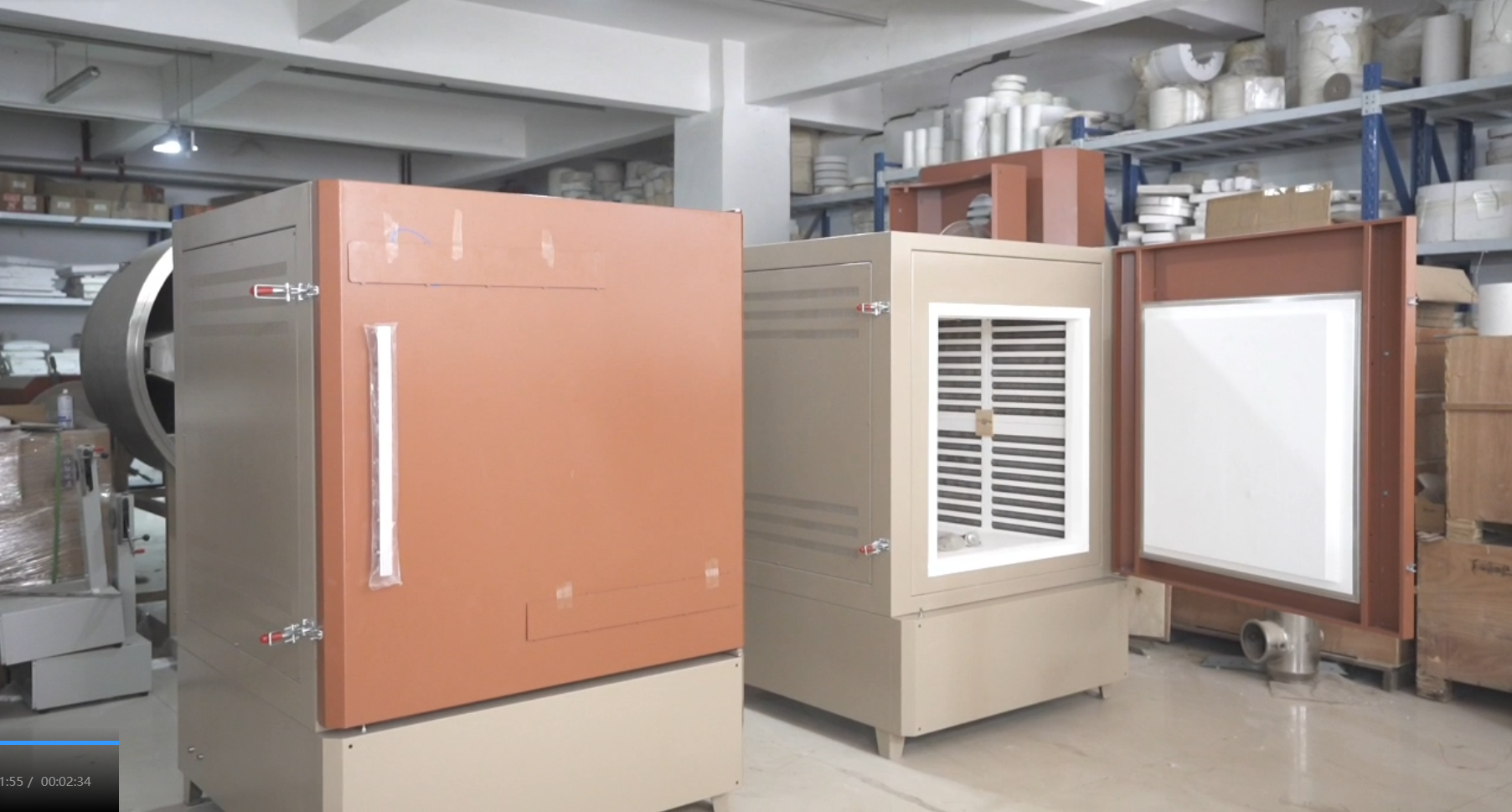

Industrial Large Muffle furnace is designed for high temperature environment below 1700°C, using high quality high temperature resistant materials and advanced temperature control technology to meet the needs of accurate heat treatment in laboratory and industrial scenarios. Its large volume furnace (which can be customized to hundreds of liters) supports batch processing, significantly increasing production efficiency.
Core product features
High temperature uniformity
U-shaped silicon molybdenum rod/silicon carbon rod/resistance wire heating, combined with multi-layer heat insulation structure, to ensure the temperature uniformity error in the furnace ≤±3°C.
It is suitable for stable sintering of temperature-sensitive materials such as precision ceramics and special alloys.
Intelligent and precise temperature control
Equipped with PID microcomputer control system, support 30 programming heating, real-time monitoring and automatic calibration temperature.
Equipped with RS485 communication interface, PC can be connected to achieve remote monitoring and data recording.
Industrial grade safety protection
Double-layer heat insulation design of furnace body, surface temperature ≤45°C, to ensure safe operation.
Built-in over temperature protection, leakage protection, overpressure alarm and other multiple safety mechanisms.
Energy efficient design
The high purity alumina fiber furnace with modular structure increases the heating rate by 20% and reduces the energy consumption by 15%.
Typical application scenario
Metal heat treatment: stainless steel annealing, aluminum alloy solution, copper tempering
Ceramic/glass manufacturing: electronic ceramic sintering, glaze melting, glass tempering
Chemical materials: catalyst activation, powder metallurgy, nanomaterials synthesis
Scientific research experiments: university laboratories, third-party testing institutions, new materials research and development center
Overview of technical parameters
Project parameter details
Maximum temperature 1700°C
Temperature control accuracy ±1°C
Furnace volume 20L/60L/120L (customized)
Heating element high quality resistance wire/silicon carbide rod /u silicon molybdenum rod
Power supply 220V/380V, 50Hz/60Hz adaptive
Certification standards CE, ISO9001, RoHS
Why choose our Muffle oven?
Customized services: Adjust furnace size, temperature ceiling and control system according to requirements
Global guarantee: 2 years warranty, 48 hours quick response technical support
