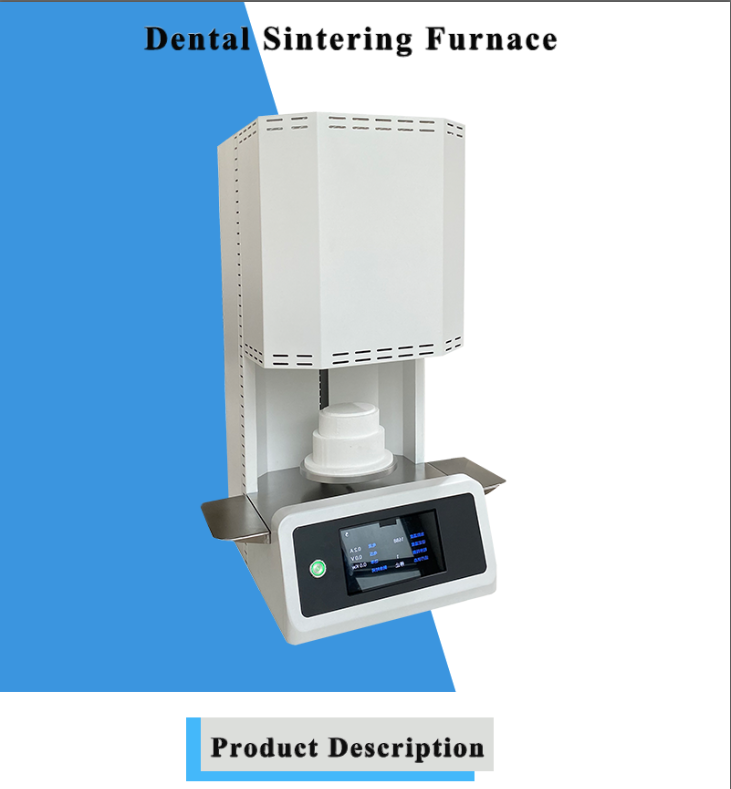

Dental Sintering Furnace
Dental Zirconia Furnace    View:499    Date:2023/12/21

The dental furnaces consist of a double shell structure with excellent insulation. The specially designed

 structure ensures that the furnace can achieve fast heating and cooling procedures, providing a cleaner

 working environment during the zirconia sintering process. And we design two different heating elements according to your needs. If you have a lower working temperature of up to 1600C and prefer fast sintering,

 SIC bars will be a suitable choice. If you prefer higher temperatures up to 1700C, we are also able to offer

 Mosi2 rod heating. In addition, dental sintering furnaces can be set up with multiple temperature profiles

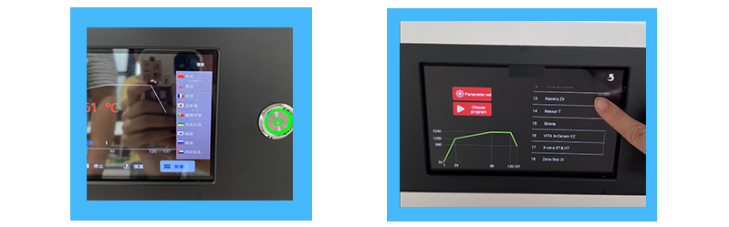

 to meet the different sintering requirements of our customers. What's more, the control panel supports ten national languages. The large size allows the furnace to sinter 3 crucibles (MAX.80 crowns) at a time, making

 it a good choice for dental offices. For more information, please feel free to contact us.

Technical Parameter
DSF-PY1
DSF-PY2
Voltage
AC:220;50/60HZ
Power(kw)
2
Max. Temp(℃)
1600℃
1700 ℃
Working Temp(℃)
1530℃ for continuously
1650℃ for continuously
Heating Elements
Spiral Sic Heating Elements(4 pcs)
Mosi2 Heating Elements(4 pcs)
Temp Accuracy
±1℃
Temperature Control
Touch Screen Control System
Chamber Size
Dia 100 × H 120 thermocouples
Thermocouple
B Type
Heating Rate
0~50℃/min
Note: More about dental sintering furnace details welcome to contact us!

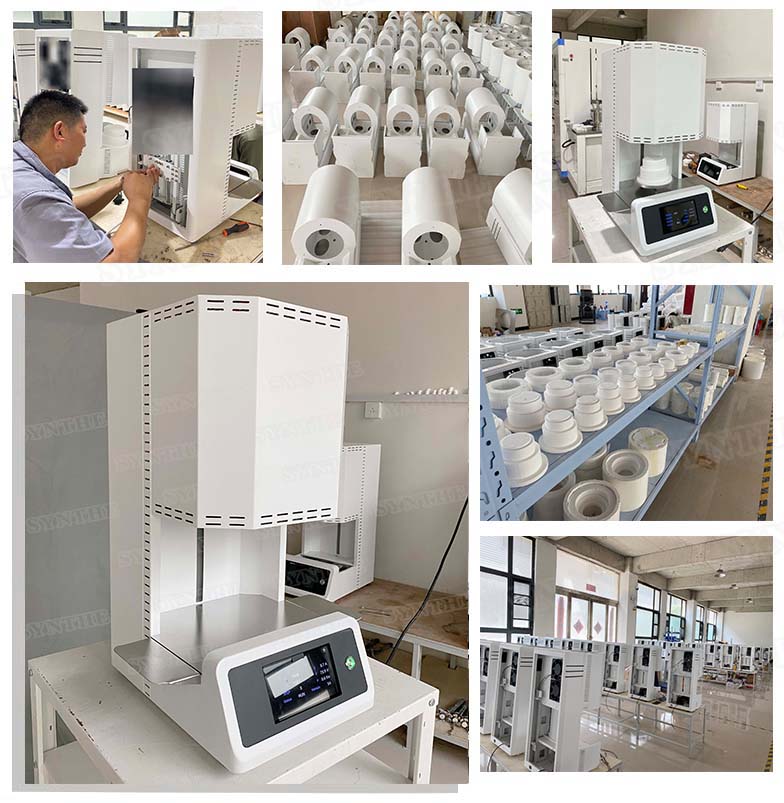

OUR FACTORY
