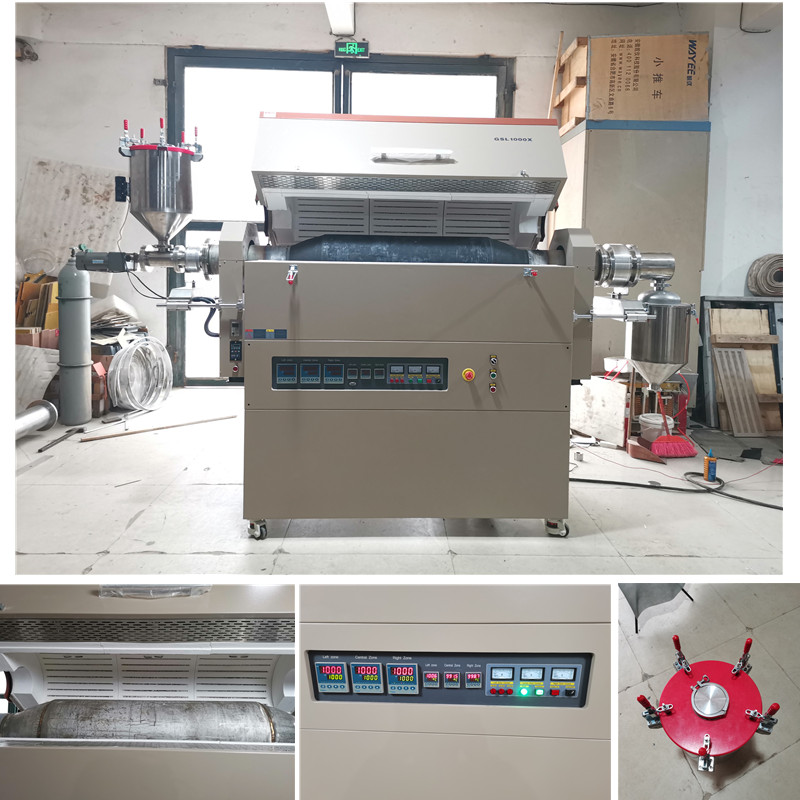

High Temperature Tilting Rotary Tubular Furnace
Rotary Tube furnace    View:154    Date:2022/08/02


About Middle Tube Furnace:

1.Middle Size tube furnace is a multi-temperature zone;
2.Resistance wire as heating element,its continuous working temperature can reach 1000℃;
3.The tube furnace is equipped with stainless steel vacuum sealed flanges;
4.Tube Furnace has a four-channel gas supply system that allows heating of samples in vacuum or flowing

gas conditions;
5.The high precision thermostat provides 51 heating and cooling steps to +/ -1 oC accuracy;
6.The tube furnace euiped tilt system can achieve continuous feeding and discharge;
Note:More about tube furnace details welcome to contact us!

Video Link:https://www.youtube.com/embed/DBQSsfg1Vm0

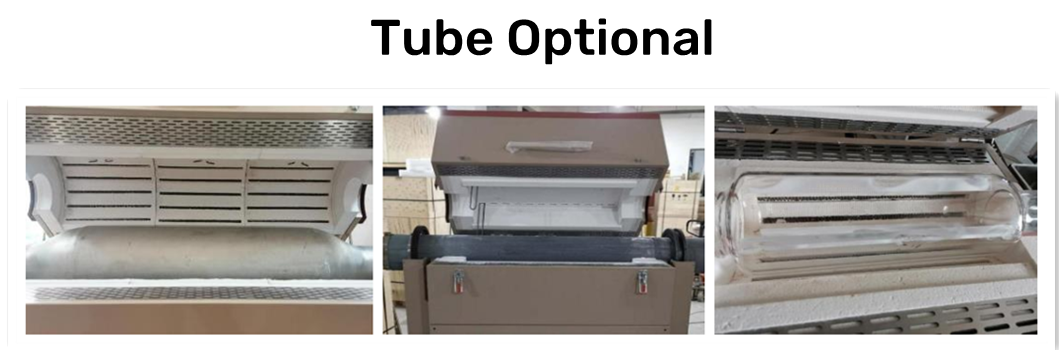

Note:The choice of pipe material and heating elements will be influenced by size and temperature.

Technical Specification:

Power

26KW

Voltage

AC 415V 3Phases 50Hz

Max. temp

1100

Constant working temp.

1000 for continuously

Tube Processing

Material:SS310

Length of Tube

2200mm

Spec of Tube

Customized

Furnace body inclination angle

0~35°

Thermocouple

K type

Temp accuracy

±1

Temp control

PID automatic control with 51 steps programmable

Heating element

Heating Resistance wire

Mass Flow Controllers

Four Channels

Mass Flow Rate is 0 - 3000 SCCM

Note:We can provide design according to your requirements. Welcome to consult us for more information.

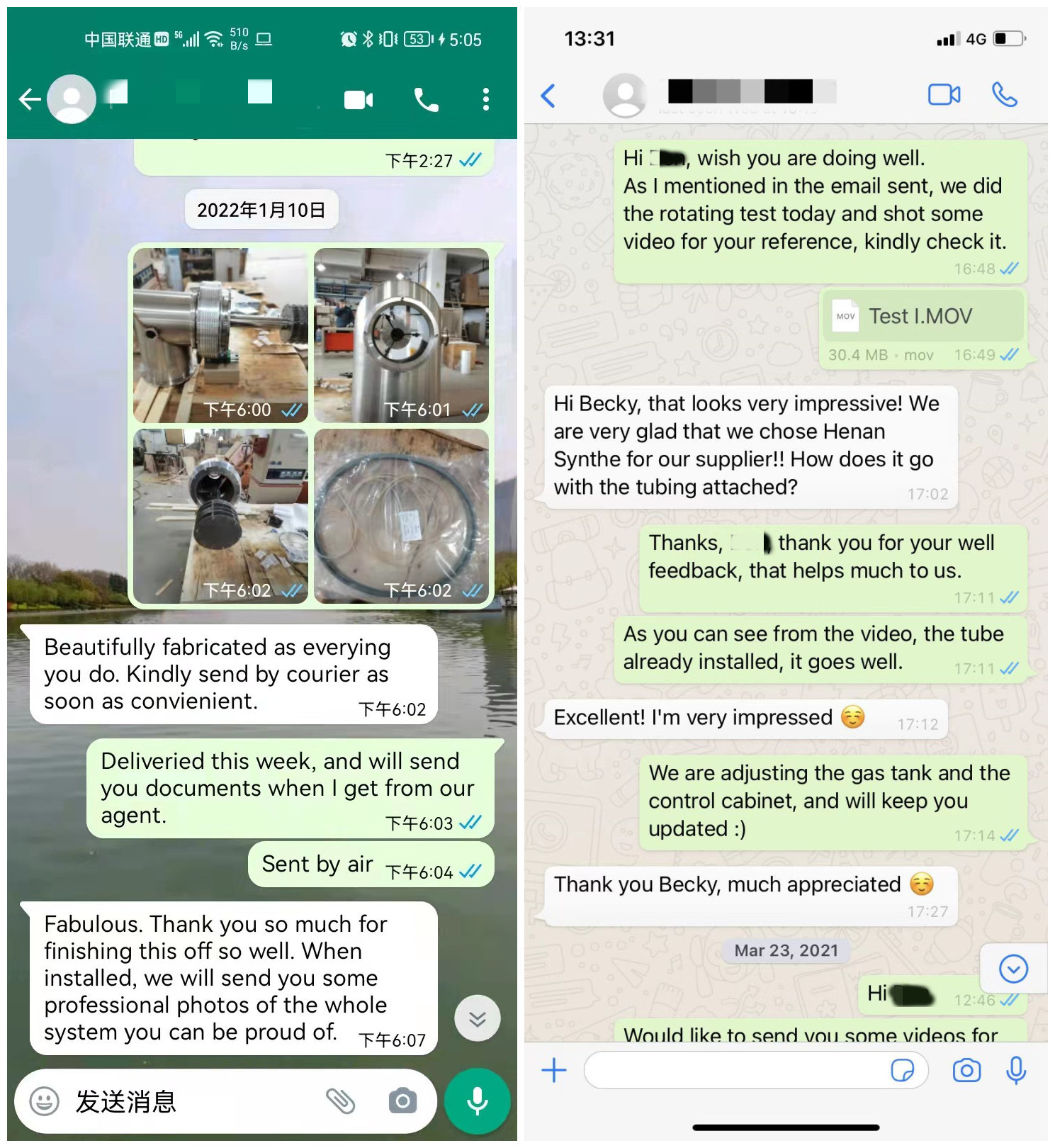

The customers Feedback:

We have been engaged in heat treatment equipment for more than ten years, and have been committed

to providing customers with solutions to meet their needs and being a solver of customer problems.

Thank customers for their affirmation.
