Vacuum Heat Treating Furnaces
Atmosphere vacuum furnace    View:163    Date:2022/08/02


About Atmosphere Vacuum Furnace:

1.The furnace facilitate operation of firing cycles where atmosphere condition can be altered during operation

cycle, from oxidizing, (such as air to inert atmosphere), or argon/nitrogen to rough vacuum.

2.This type of furnace makes multi-atmosphere process in one cycle possible: binder burn out in air and parts

sintering under vacuum or inert gas atmosphere.

3.These furnaces are designed for accurate air/ inert gas flow rate control, accurate temperature control, excellent

temperature uniformity,long lasting performance and safe operations.

4.It is ideal for laboratories and small scale production.
Note:More about atmosphere vacuum furnace details welcome to contact us!
Video Link:https://www.youtube.com/embed/uAWlOv-1RC0

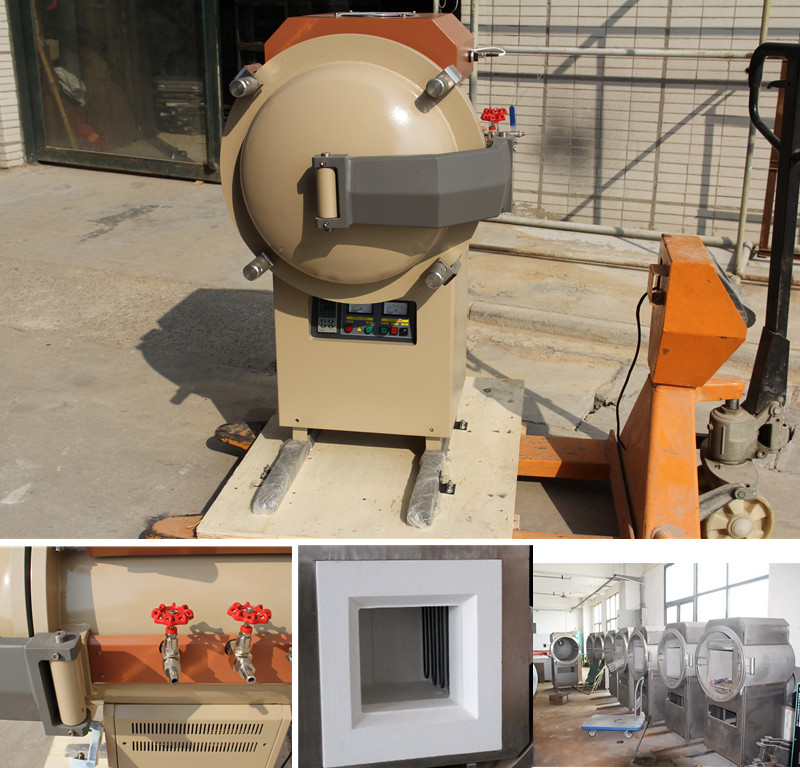

Atmosphere Vacuum Furnace

Technical Specification:

Furnace Structure

Double shell steel case with cooling fan to keep outside case cool

High purity foamed ceramic insulation for max. energy saving

Voltage

AC 208-240V50/60HZ, Single Phase

Power

15 Kw

Max. Temperature

1650℃

Chamber Size

Customized

Temperature Control

30 segments easy use PID programmable temperature controller

Control accuracy

+/-1°C

Heating Element

MoSi2 Heating Elements

Thermocouple

K Type

Special Configuration

Explosion Door

Pirani Gauge

Note:We can provide design according to your requirements. Welcome to consult us for more information.
