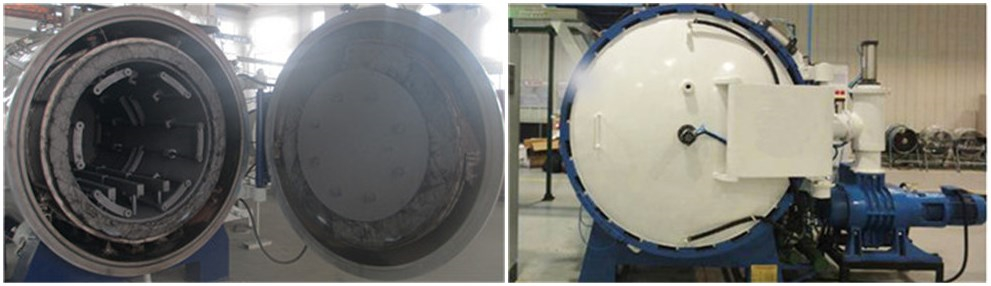

Vacuum Sintering Furnace
VACUUM SINTERING FURNACES    View:1041    Date:2020/06/12


Product Description

Vacuum Sintering Furnace, is widely applied for the quenching of low,middle and high alloy steels. The system is able to completely replace the other quenching systems which worked in the air or protective atmosphere. The parts have the bright surface and reliable quality. Customers can select graphite heaters or metal heaters in accordance with the practical conditions of your enterprises, or select 6 bar or 10 bar cooling pressure in accordance with the properties of materials to be treated.


Features

Furnace Body

Structure of Double-Deck Cylinder, with material Carbon Steel.

Equipped with water cooling system, ensure outer shell safety to touch.

Heating Chamber

Equipped with high quality Graphite, with homocentric design, the maximum temperature can reach to 2000oC.

The insulating layer is stainless steel outer-frame, heat screen is of soft carbon felt, to ensure the performance of heat insulation.

1300℃ and 2200℃ by Graphite heating element can be selected.

Low temperature and high temperature using different temperature sensor for control, automatic switching.

Vacuum System

With vacuum level is 10-1 Pa or 10-3 Pa  level demanding.Operate with Roots Pump & Mechanical Pump.

Under no-load/ dry degassing, it takes no more than 30 minutes to reach demand vacuum. The leakage rate of chamber is no more than 0.5 Pa/ h.

Control System

Easy Operation, Can be Operated by Single Person;

The whole Operation can be Recorded automatically;


Technical Data

Model

Size

(mm)

Installed Capacity

(Kg)

Heating Power

(Kw)

Temperature

Uniformity

(±°C)

Press Rise

Rate

(pa/h)

VTS-335

300X300X500

100

60



5



0.5

VTS-446

400X400X600

200

80

VTS-557

500X500X700

300

100

VTS-669

600X600X900

500

120

VTS-8812

800X800X1200

1000

210

※Other dimensions are available


Henan Synthe has the ability to offer the design and produce according to your specific demand, please contact us if you are looking for customized heat treatment solutions for your company.
